Unpolish Boron Carbide Venturi Nozzles For Sandblasting
10pcs
MOQ
negotiable
Preis
Unpolish Boron Carbide Venturi Nozzles For Sandblasting
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Grundinformation
Herkunftsort: Zhuzhou--Karbid-Stadt
Markenname: Whitout Brand
Zertifizierung: ISO9001, SGS
Modellnummer: Als Ihre Anforderungen
Markieren:

Boron Carbide Venturi Nozzles

,

Sandblasting Venturi Nozzles

,

unpolish Venturi Nozzles

Zahlung und Versand AGB
Verpackung Informationen: 1PCS in einem Kunststoffrohr, 10 PCS pro Gruppe
Lieferzeit: 15-25 Arbeitstage
Zahlungsbedingungen: T/T, Paypal, Western Union
Versorgungsmaterial-Fähigkeit: 50000pcs/month
Technische Daten
Oberfläche: polnisch oder unpolish, reibend oder ungrinding
Material: 100% Rohstoff
Qualität: Hüfte-gesintertes, Mikrokorn
Präzision: Hohe Präzision
Lieferzeit: 15-20 Arbeitstage
Produkt-Beschreibung

1. Boron carbide sand blasting nozzles
they have a service life 4-7times of sintered tungsten carbide nozzles, but their shock resistance is not as that of sintered carbide nozzles, so are suitable to serve under wear, stable atmospheric pressure and medium shock.
Specification:
Grind resistant, do not active with acid, low & high temperature resistance,
The density> =2.46g/cm3;
Hardness> =3500kgf/sqm, bending resistance: ≥ 400Mpa
Melting point: 2450degree
And now boron carbide nozzle is instead of hardness alloy, Tungsten carbide nozzle, silicon carbide sandblasting nozzle.
The working life of boron carbide nozzle is 500-1000H
The size can be customized as per drawing

2. Sintered tungsten carbide
products including various sand blasting nozzle, high-pressure water spray nozzle, high-pressure water cutting nozzle, bars, sheets, sealing rings, punching die blocks, glass cutters, etc.
We are able to produce tubes with diameter of 200mm and length of 300mm, for rings, size can be diameter up to 320mm and length to be 200mm.

advantages on Tungsten carbide sand blasting nozzles :
1. very high hardness.
2. stable working effort during blasting.
3. long sizes are accetable.
4. very good prices with quite fast delivery.
5. special sizes with drawing are acceptable.

Grade Recommend of Tungsten carbide sand blasting nozzles :

Grade Equal to ISO Category Number Performance Uses
Density Bend Strength Hardness
G/Cm3 N/mm2 HRA
YG3 K01 14.9-15.3 1180 ≥90.5 sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles.
YG3X K01 15.1-15.4 ≥1300 ≥91.5
YG6X K10 14.8-15.1 ≥1560 ≥91.0 Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron.
YG6A K10 14.7-15.1 ≥1580 ≥91.0
YG6 K20 14.7-15.1 ≥1670 ≥89.5 Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc.
YG8 K20-K30 14.6-14.9 ≥1840 ≥89 Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts


3. Silicon carbide sand blasting nozzles
have middle wear resistance and anti-shock ability compared with boron carbide and tungsten carbide, and much lighter than tungsten carbides.

Estimated service life of nozzles(In hours)


Nozzle Material


Steel Grit/Shot


Sand


Aluminum Oxide


Alumina


20-40


10-30


1-4


Tungsten Carbide


500-800


300-400


20-40


Silicon Carbide


600-1000


400-600


50-100


Boron Carbide


1500-2500


750-1500


200-1000

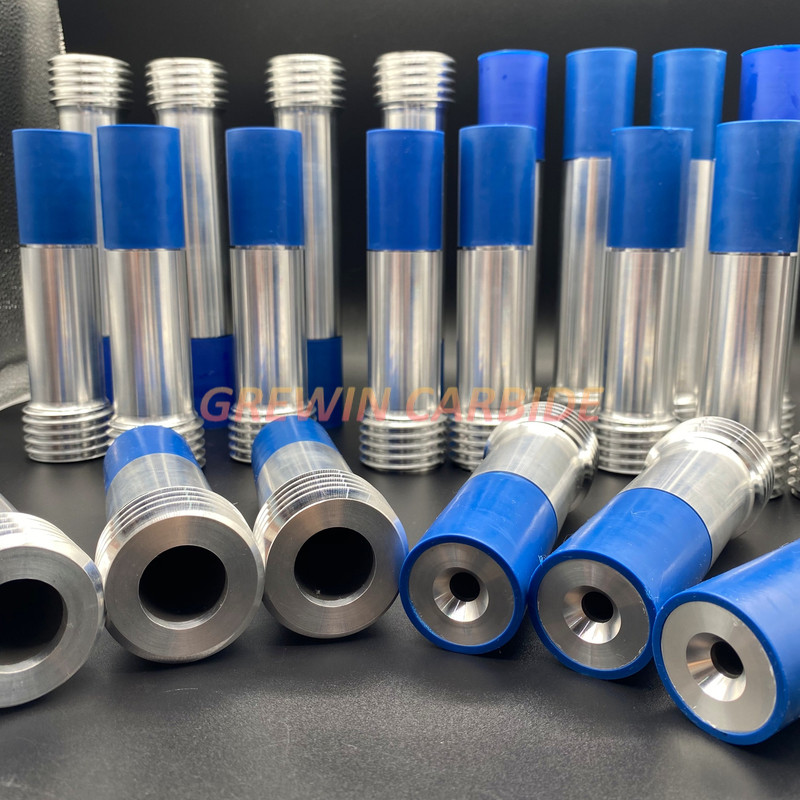

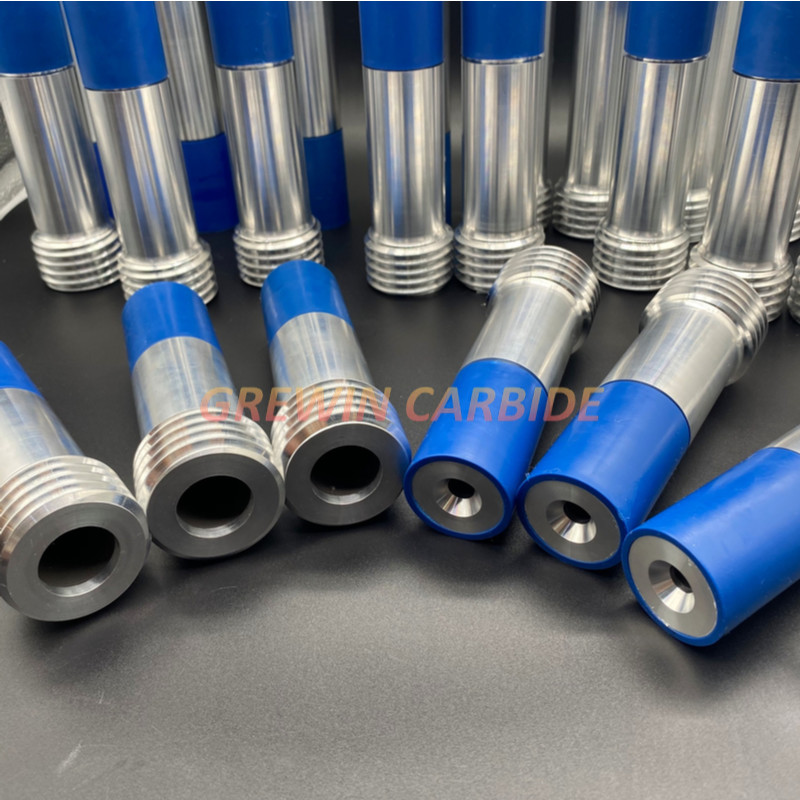

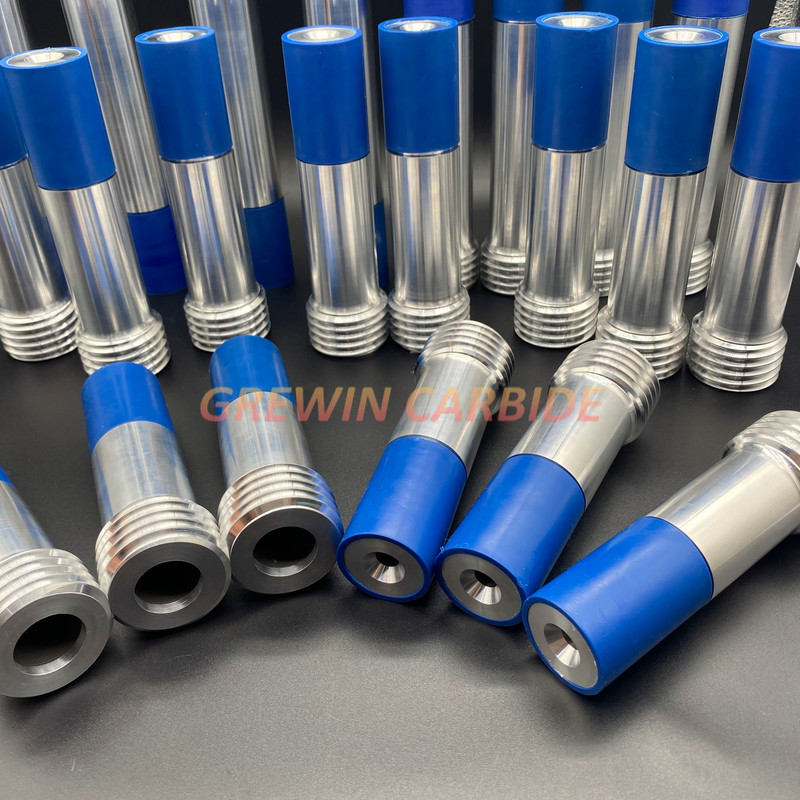

Product Show:

Unpolish Boron Carbide Venturi Nozzles For Sandblasting 0Unpolish Boron Carbide Venturi Nozzles For Sandblasting 1Unpolish Boron Carbide Venturi Nozzles For Sandblasting 2

More information, please kindly contact us.

Best regards
Grewin carbide
