Hartmetallstangen für Schaftfräser
Um die bestmögliche Leistung zu erzielen, ist es sehr wichtig den passenden Karbidgrad für Ihre Anwendung zu beschließen, können unsere erfahrenen Ingenieure Sie mit Ihrem Entwurf und Materialauswahl unterstützen die beste Abnutzung für Ihren bestimmten Bedarf sicherstellend.
Produkt-Name
|

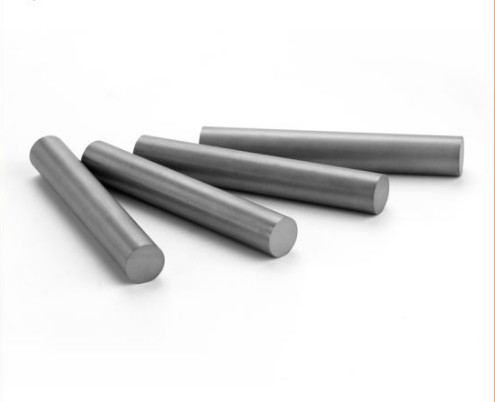

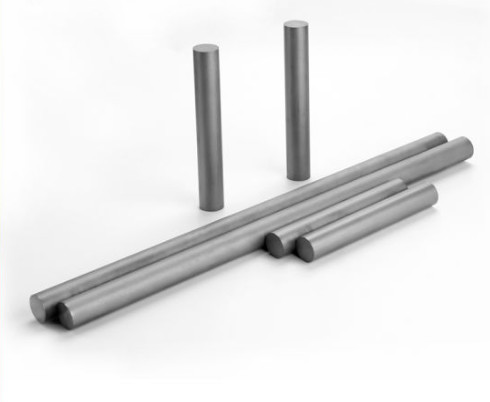

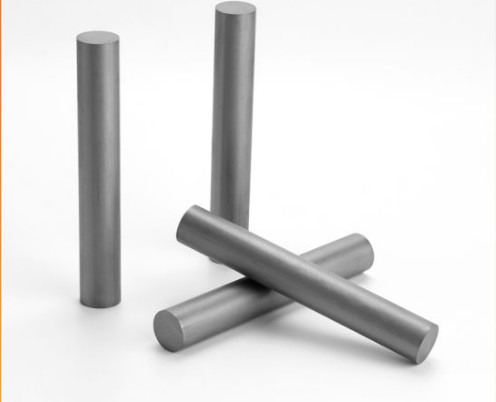

YG10X-Hartmetallstangen für Schaftfräser
|
Material
|
Hartmetall
|
Farbe
|
Grau
|
Standard
|
Customrized
|
Grad
|
YG8, YG9C, YG10x
|
Brade
|
BWCARBIDE
|
GRÖSSE
|
Besonders angefertigt
|
Verwendet
|
Für Endmills-Gratbohrgeräte
|
Feste Rod (metrische) 330mm
Ungemahlen | h6 |
L |
Tol. |
Ungemahlen | h6 |
L |
Tol. |
||
D | Tol. | D | Tol. | ||||||
Ø2.2 | +0.3/+0 | 2,0 | 330 | +5/+0 | Ø17.2 | +0.3/+0 | 17 | 330 | +5/+0 |
Ø3.2 | +0.3/+0 | 3,0 | 330 | +5/+0 | Ø18.2 | +0.3/+0 | 18 | 330 | +5/+0 |
Ø4.2 | +0.3/+0 | 4,0 | 330 | +5/+0 | Ø19.2 | +0.3/+0 | 19 | 330 | +5/+0 |
Ø5.2 | +0.3/+0 | 5,0 | 330 | +5/+0 | Ø20.2 | +0.3/+0 | 20 | 330 | +5/+0 |
Ø6.2 | +0.3/+0 | 6,0 | 330 | +5/+0 | Ø21.2 | +0.3/+0 | 21 | 330 | +5/+0 |
Ø7.2 | +0.3/+0 | 7,0 | 330 | +5/+0 | Ø22.2 | +0.3/+0 | 22 | 330 | +5/+0 |
Ø8.2 | +0.3/+0 | 8,0 | 330 | +5/+0 | Ø23.2 | +0.3/+0 | 23 | 330 | +5/+0 |
Ø9.2 | +0.3/+0 | 9,0 | 330 | +5/+0 | Ø24.2 | +0.3/+0 | 24 | 330 | +5/+0 |
Ø10.2 | +0.3/+0 | 10,0 | 330 | +5/+0 | Ø25.2 | +0.3/+0 | 25 | 330 | +5/+0 |
Ø11.2 | +0.3/+0 | 11,0 | 330 | +5/+0 | Ø26.2 | +0.3/+0 | 26 | 330 | +5/+0 |
Ø12.2 | +0.3/+0 | 12,0 | 330 | +5/+0 | Ø27.2 | +0.3/+0 | 27 | 330 | +5/+0 |
Ø13.2 | +0.3/+0 | 13,0 | 330 | +5/+0 | Ø28.2 | +0.3/+0 | 28 | 330 | +5/+0 |
Ø14.2 | +0.3/+0 | 14,0 | 330 | +5/+0 | Ø29.2 | +0.3/+0 | 29 | 330 | +5/+0 |
Ø15.2 | +0.3/+0 | 15,0 | 330 | +5/+0 | Ø30.2 | +0.3/+0 | 30 | 330 | +5/+0 |
Ø16.2 | +0.3/+0 | 16,0 | 330 | +5/+0 |
Zwei gerade Kühlmittelrohrstangen, verringerten TK
Ungemahlen | Grund-h6 |
TK |
Tol. |
D |
Tol. |
L |
a |
|
D |
Tol. |
|||||||
6,3 | +0.3/0 |
6,0 | 1,5 | 0/-0.20 | 0,80 | ±0.15 |
330 |
0,15 |
7,3 | 7,0 | 1,5 | 0,80 | 0,15 | ||||
8,3 | 8,0 | 2,6 | 0/-0.30 |
1,00 | 0,15 | |||
9,3 | 9,0 | 2,6 | 1,00 | 0,20 | ||||
10,3 | 10,0 | 2,6 | 1,00 | 0,20 | ||||
11,3 | +0.4/0 |
11,0 | 3,5 | 1,20 | 0,28 | |||
12,3 | 12,0 | 3,5 | 1,20 | 0,30 | ||||
13,3 | 13,0 | 3,5 | 1,20 | 0,34 | ||||
14,3 | 14,0 | 5,0 | 1,50 | 0,37 | ||||
15,3 | 15,0 | 5,0 | 1,50 | 0,40 | ||||
16,3 | 16,0 | 5,0 | 1,50 | ±0.20 |
0,40 | |||
17,3 | +0.5/0 |
17,0 | 6,2 | 2,00 | 0,47 | |||
18,3 | 18,0 | 6,2 | 2,00 | 0,50 | ||||
19,3 | 19,0 | 6,2 | 2,00 | 0,50 | ||||
20,3 | 20,0 | 6,2 | 0/-0.40 | 2,00 | ±0.30 | 0,50 |
Schraubenartige Rohre des Kühlmittel-30° zwei (Art HE-30°)
Ungemahlen | Grund-h6 |
L Tol. +5,0 |
TK |
Tol. |
D |
Tol. |
Neigung |
|
D | Tol. | |||||||
6,3 | +0.4/+1.0 |
6,0 | 330 | 2,7 | ±0.2 |
0,80 | ±0.15 |
32,65 |
7,3 | 7,0 | 330 | 3,5 | 1,00 | 38,09 | |||
8,3 | 8,0 | 330 | 3,4 | 1,00 | 43,53 | |||
9,3 | 9,0 | 330 | 4,5 | ±0.3 | 1,40 | 48,97 | ||
10,3 | 10,0 | 330 | 4,8 | 1,30 | 54,41 | |||
11,3 | +0.4/+1.2 |
11,0 | 330 | 4,9 | ±0.4 |
1,40 | 59,86 | |
12,3 | 12,0 | 330 | 6,3 | 1,70 | 65,30 | |||
13,3 | 13,0 | 330 | 6,1 | 1,75 | ±0.20 |
70,74 | ||
14,3 | 14,0 | 330 | 6,7 | 1,80 | 76,18 | |||
15,3 | 15,0 | 330 | 7,3 | 1,75 | 81,82 | |||
16,3 | +0.4/+1.4 |
16,0 | 330 | 8,0 | 2,00 | 87,06 | ||
17,3 | 17,0 | 330 | 8,5 | 1,75 | ±0.25 |
92,50 | ||
18,3 | 18,0 | 330 | 9,0 | 2,30 | 97,95 | |||
19,3 | 19,0 | 330 | 9,7 | 2,00 | 103,39 | |||
20,3 | 20,0 | 330 | 10,0 | ±0.5 | 2,50 | 108,83 |
